Active Differential Probe
Original price was: USD 1,420.00.USD 998.00Current price is: USD 998.00.
CE-DP1500V1.1
High-precision active probe for differential and single-ended measurements from DC to above 1.5 GHz. It operates in 1:1 mode or 10:1 using the divider adapter and features universal USB power. Included SMA-to-BNC, SMA-to-TNC, and SMA-to-Type-N RF adapters enable connection to oscilloscopes, spectrum analyzers, RF generators, network analyzers, and eLABin1™.
📄 For more information or specifications, please visit the following link: Active Probe
On Stock: Lead time 2-3 weeks.
Contact us if you would like to be notified when it becomes available again.
Note: This item is out of stock. If it is unavailable, you can pre-order it. The estimated delivery time is 8 to 12 weeks.
Available on backorder
Description
CE-DP1500V1.1
The Coffee Electronics active differential probe offers a >1.5 GHz bandwidth and is designed for high-precision differential signal measurements in high-speed, mixed-signal, and RF circuits. Its active input stage provides high impedance and excellent common-mode rejection ratio (CMRR), minimizing circuit loading and preserving signal integrity. The active differential probe is powered via its USB interface.
The probe connects natively to the eLABin1™ instrument series and is also compatible with any instrument that has SMA inputs (e.g., oscilloscopes, analyzers, or signal generators).
Main features
-
>1.5 GHz bandwidth (Normal/linear operation above 1.2 GHz, but USABLE up to 3 GHzNormal/linear operation above 1.2 GHz, but USABLE up to 3 GHz)
- DC-coupled operation for measurements starting at DC.
-
High-impedance active input with excellent CMRR
-
Dimming modes ×1 or ×10 (adapter required)
-
Maximum Operational Voltage: 1 Vpp (recommended)
-
Integrated LED lighting at the tip for precise visibility
-
USB interface module for power
-
Lightweight, protected and ergonomic design
- Measures differential signals and can also be used for single-ended measurements by connecting the negative input to ground.
-
Universal USB-A power input compatible with measurement instruments and standard 5 V USB power sources.
- Includes SMA-to-BNC, SMA-to-Type-N and SMA-to-TNC RF adapters for connection to oscilloscopes, spectrum analyzers, RF generators, network analyzers and eLABin1™.

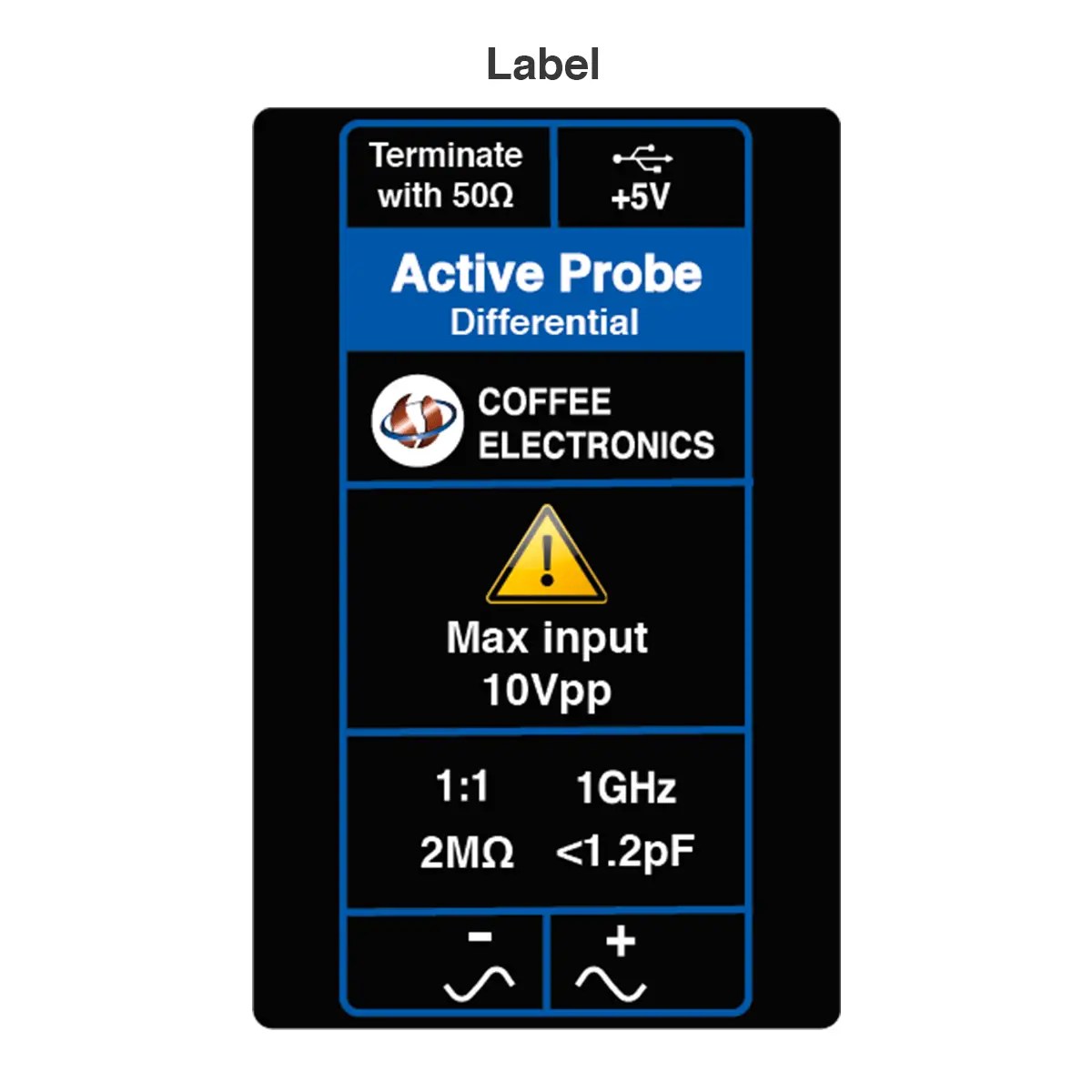

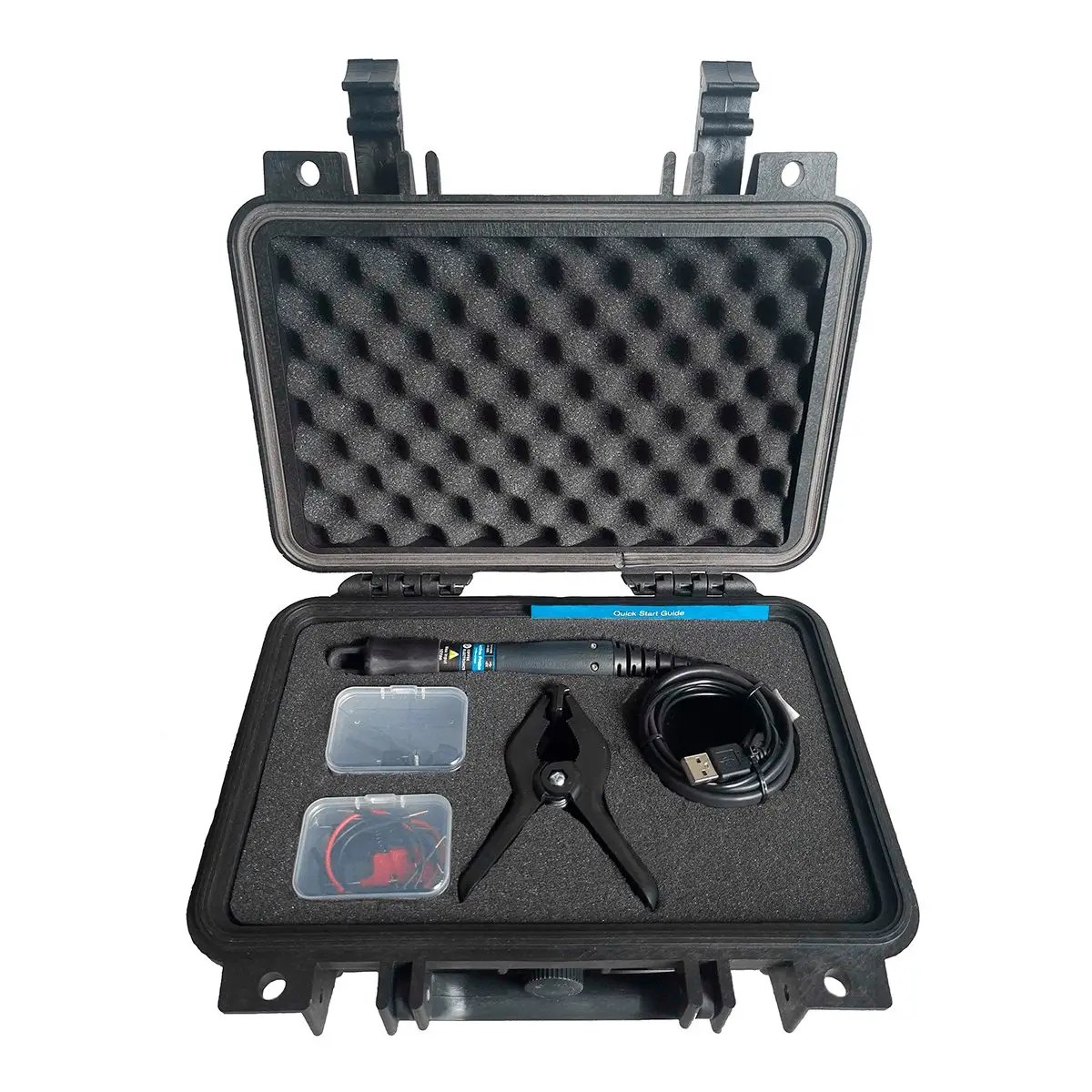

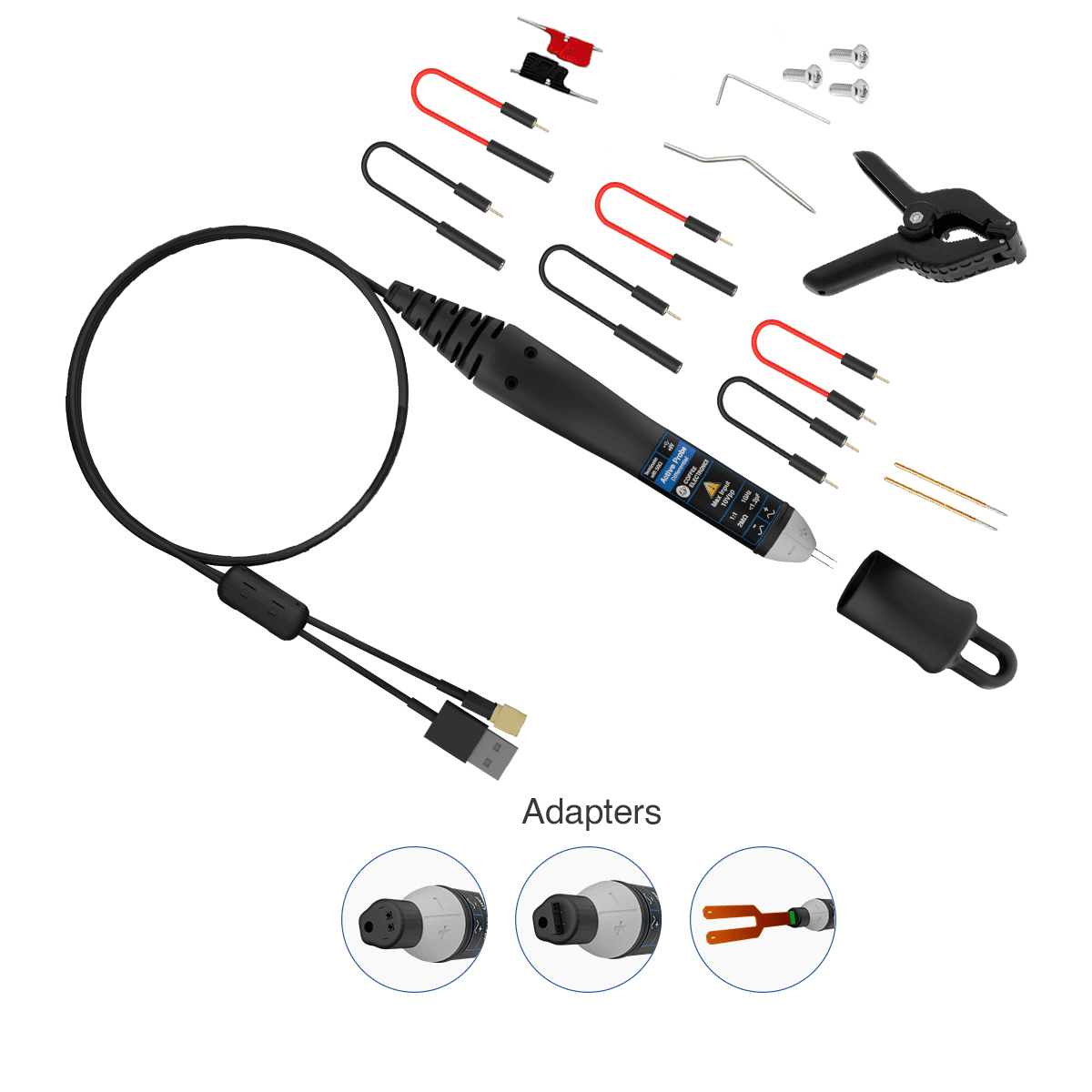

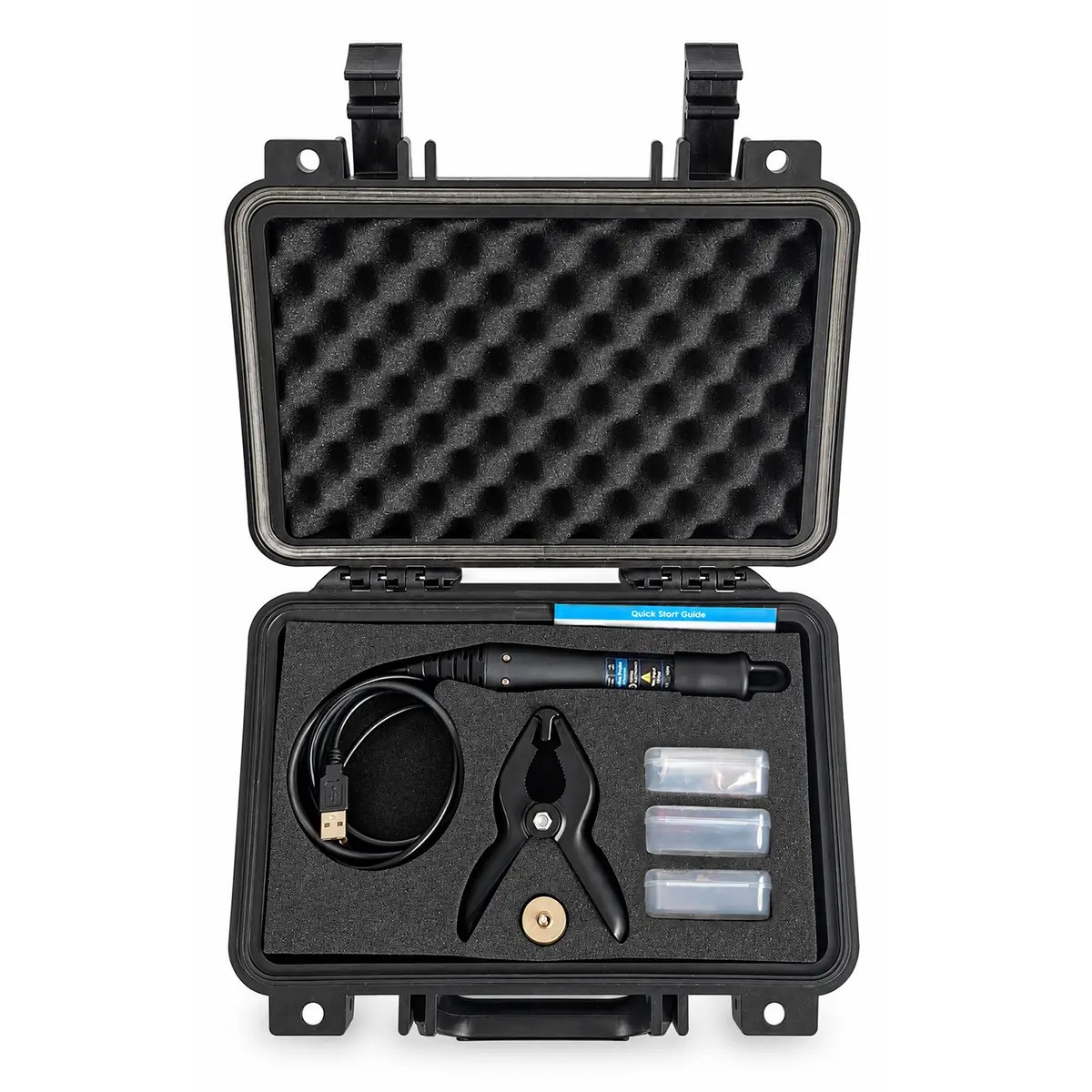

Included accessories
-

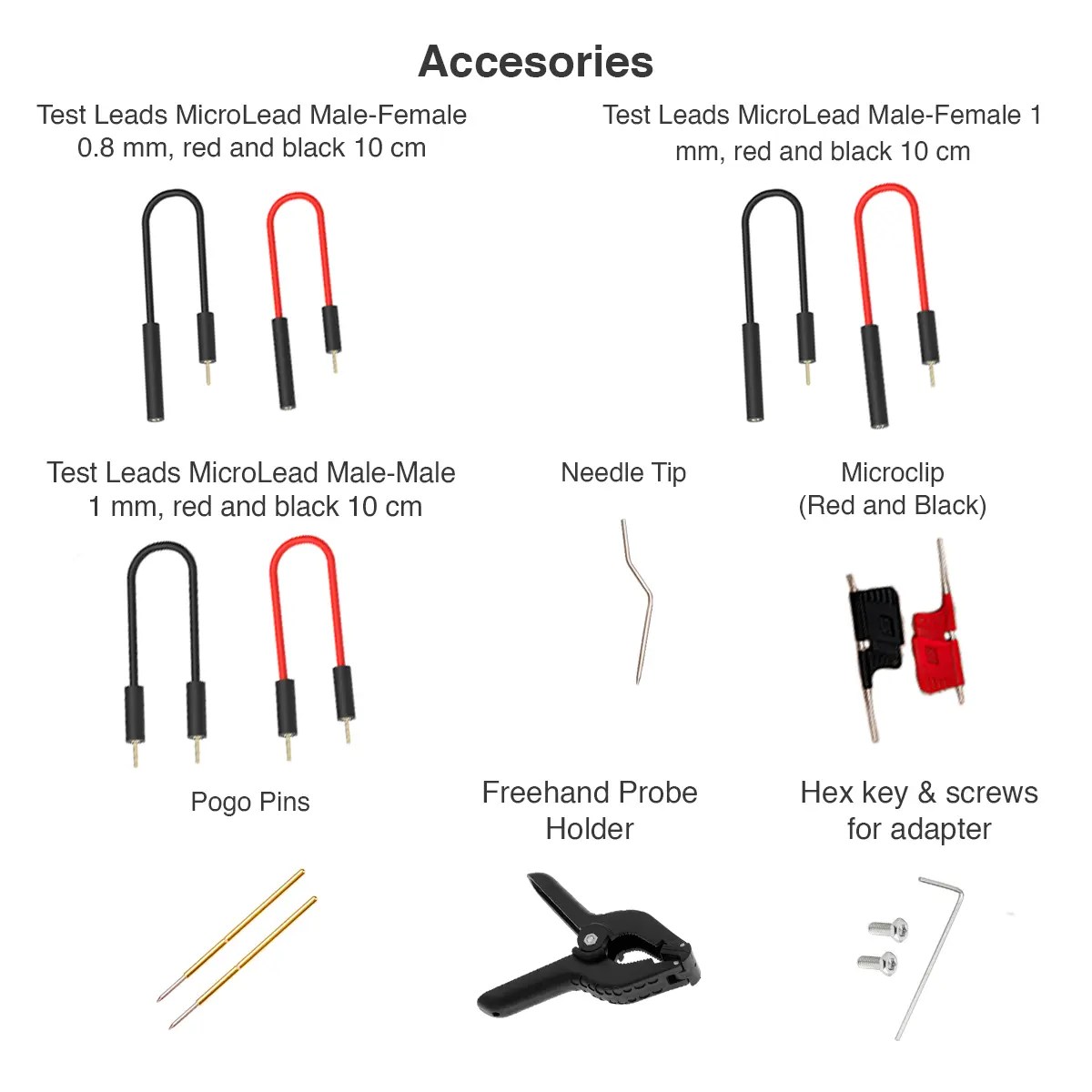

Pogo pins x5
-
Test Leads MicroLead Male-Female 1 mm, red & black 10 cm x2
-
Test Leads MicroLead Male-Male 1 mm, red & black 10 cm x2
-
Microclip (Red & Black) x2
-
Needle Tip x5
-
Hex key x1
-
Screws for adapter x5
-
Cap x1
-
Freehand Probe Holder x1

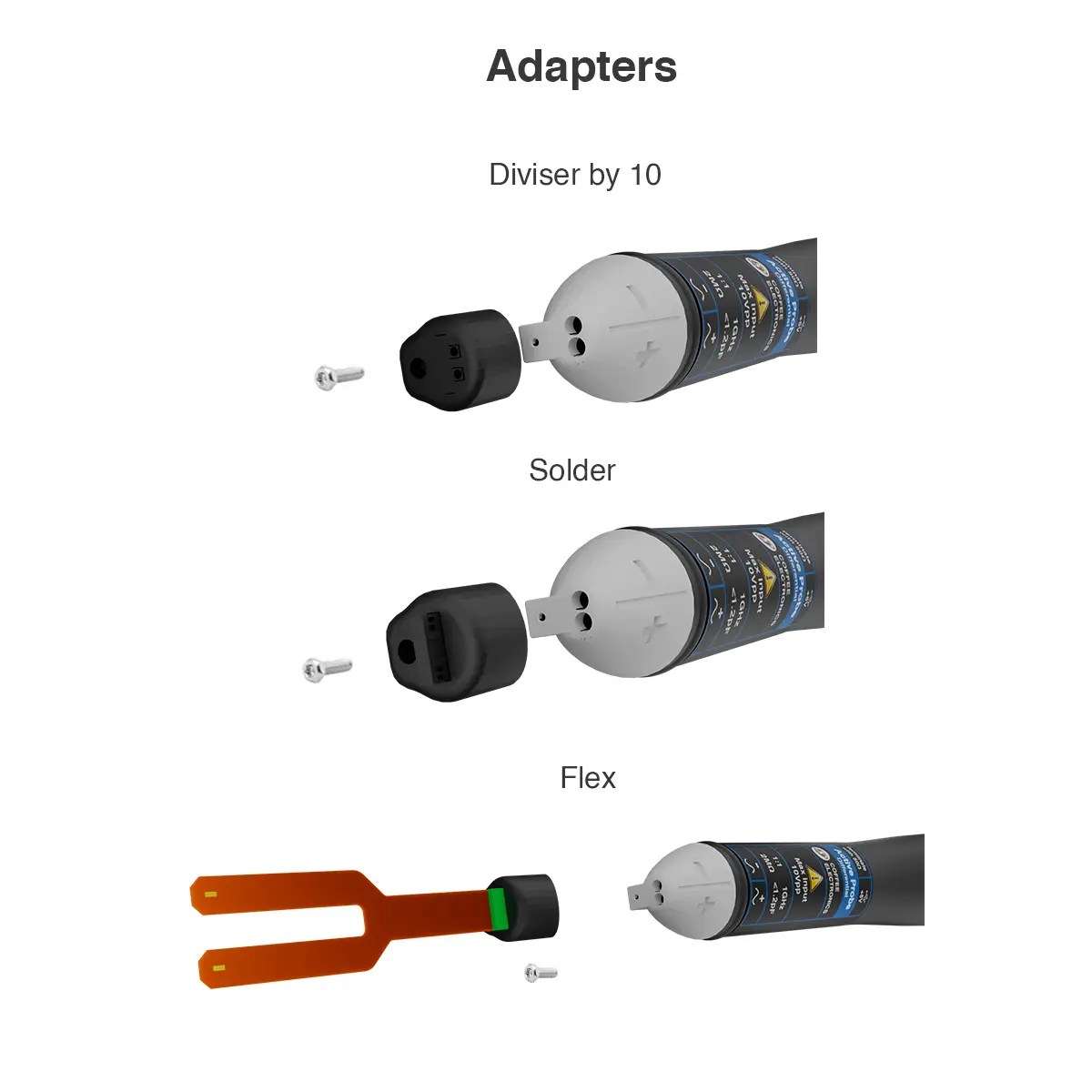

Adapters available
-
Divider by 10 adapater: expands the input voltage range up to 10 Vpp x1
- Flex adapter: enables flexible access to tight test points in dense circuits x1
- Solder adapter: for direct contact with PCB x1

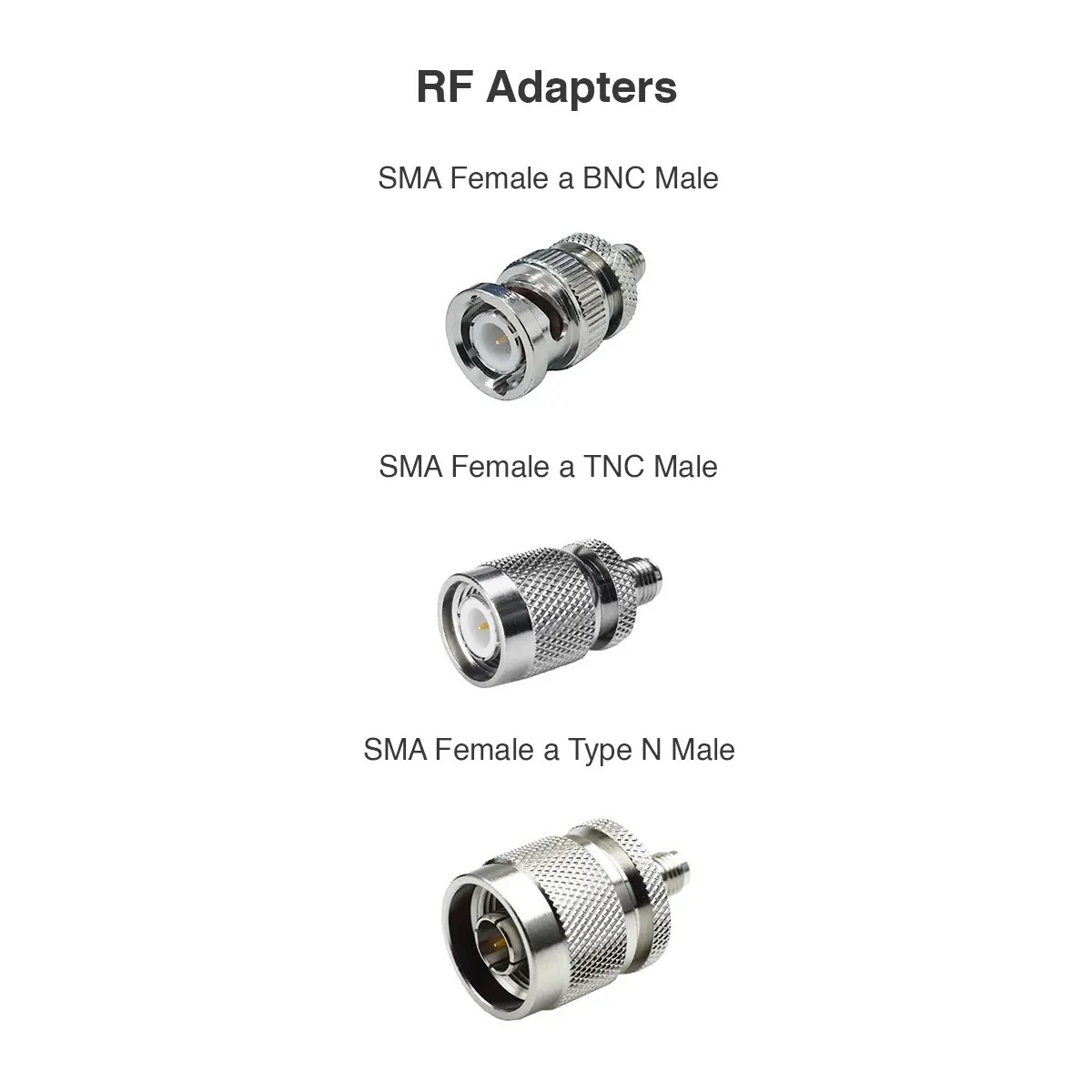

RF Adapters
- SMA Female to BNC Male RF Adapter x1
- SMA Female to BNC Male RF Adapter x1
- SMA Female to BNC Male RF Adapter x1
Electric
| Parameter | Value / Description |
|---|---|
| Type of Measurement | Differential, Active |
| Bandwidth (–3 dB) [1] | >1.5 GHz |
| Maximum Operational Voltage (Recommended) | 1 Vpp |
| Absolute Maximum Voltage Rating [2] | 10 Vpp |
| Attenuation Ratio | 1:1 (0 dB) • 1:10 (–20 dB) with adapter |
| CMRR | > 60 dB @ 1 MHz |
| Input Impedance | 2 MΩ ∥ < 1.2 pF (per input) |
| Maximum Output Level | ±5 V (max, into 1 MΩ load) |
| Power Supply | 5 V DC (USB interface module) |
[1] Normal/linear operation above 1.2 GHz, but USABLE up to 3 GHz
[2] The maximum permissible input is 10 Vpp. Exceeding this value could permanently damage the probe’s active input stage.
For optimal accuracy and linearity, operation at 1 Vpp or less is recommended.
Physical dimensions
| Parameter | Value |
|---|---|
| Coaxial cable length
Usb power supply cable lenght |
≈90 cm
≈110 cm |

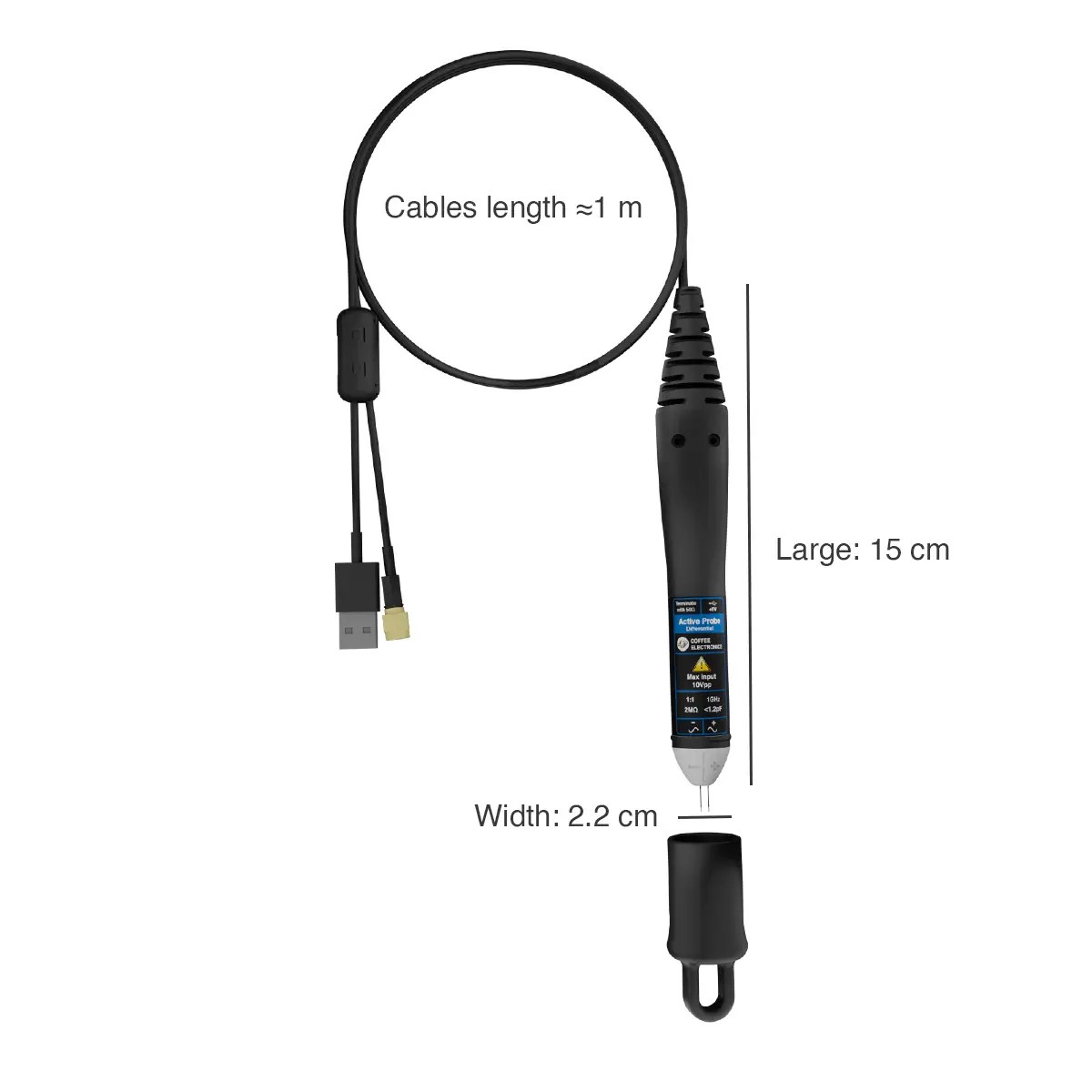

| Dimensions (L × W × H) | 15 cm × 2,2 cm |
| Weight | 65 grams |
| Connectors | SMA RF female and USB-A (power supply) |
Environment and safety
| Parameter | Value |
|---|---|
| Operating temperature | 0 °C a + 50 °C |
| Storage temperature | –20 °C a + 70 °C |
| Security category | CATEGORY I |
| Compliance | RoHS (typical for laboratory use) |
General characteristics
-
Compatible with Coffee Electronics eLABin1™ and any device with SMA and USB input ports
-
Interchangeable probe tips and flexible adapters for various test configurations
-
Designed for professional laboratory, educational, and field environments
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 23 × 12 cm |
| Bandwidth | 1 GHz |
| Rise Time | <0.5 ns |
| Input Resistance | 2 MΩ |
| Input Capacitance | <1.2 pF |
| DC Attenuation | 1:1 ±2% |
| Max Input Voltage | 1 Vpp |
