eLABin1™

  • Measurement and generation of a wide range of signals with eLABin1™
  • Local and cloud storage of results
  • Wired and wireless Internet Connection
  • Check and control devices or systems remotely
Contact Us

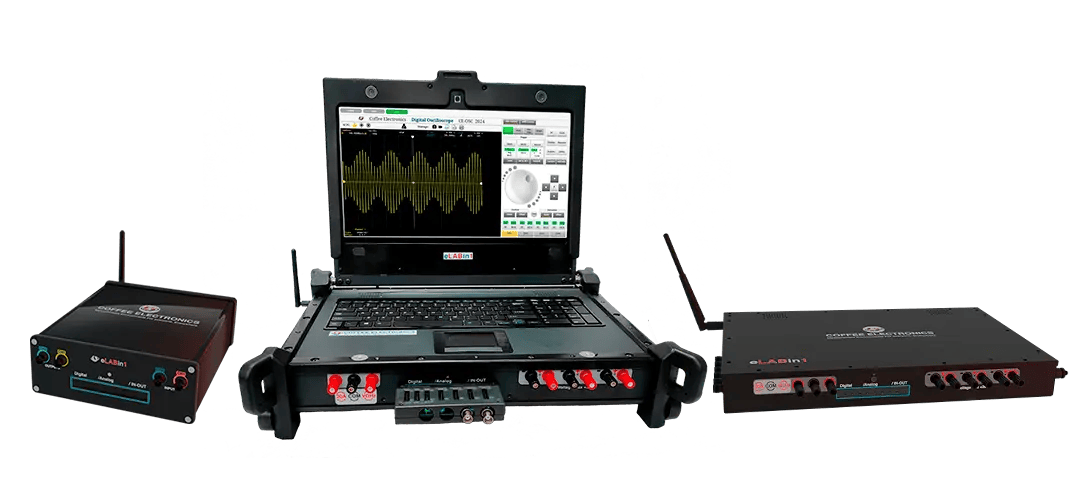

3 versions eLABin1

Exclusive Features of eLABin1™ applications

Extremely versatile

"All-in-one" eLABin1™ measurement, test and control device incorporating various measurement instruments that can run concurrently.

Customizable

Choose among several eLABin1™ applicationshardware and firmware options based on your budget, level, and application.

From Basic to Professional

Functionality and accuracy as in dedicated stand-alone devices, suitable for the most common real world signals (e.g. audio, video, sensors, etc).

3 versions eLABin1

SW- defined instrumentation

Instrumentation completely configured by software; new instruments, analyzers, devices or controls simply added via firmware upgrade.

Portable

Offers unmatched portability, making it ideal for fieldwork or lab use.

Ergonomic

Control via mouse/keyboard or touch-screen launch of several instruments simultaneously by the touch of a button, showing an individual GUI and data display in the LCD.

Discover the eLABin1™ applications

Controlling and Servicing ​

eLABin1™ is the ideal tool for controlling and servicing on-site due to its portability, optional battery powered operation and remote evaluation of measurement and control reports via log-files.

A man inspecting an electronic panel with a tablet using eLABin1™, highlighting its controlling and service capabilities.
A man pointing at a monitor displaying the eLABin1™ GUI, highlighting its intuitive interface and advanced features.

Controlling and analyze

eLABin1™ can control and analyze electromechanical systems, sensors, ICs, etc, either in a lab environment or automatically in a production or servicing environment.

Supports E-Learning

eLABin1™ supports E-Learning and acts as remote learning tool, allowing various operation modes, e.g. “interactive” via down-loadable GUI App in Android from Phone or Tablet.

A tablet displaying the eLABin1™ interface, showcasing one of its instruments and highlighting its intuitive design and advanced functionality.
A tablet displaying a connected smart home icon, highlighting eLABin1™ as IoT-ready.

IoT ready

eLABin1™ is “IoT ready”; remote operation and monitoring via Internet.

For everyone and everywhere

eLABin1™ targets a wide range of enterprises, educational institutions as well as engineers, scientists, professors, teachers, students and hobbyists working or interested in areas like electrics and electronics, IT, communications and others.

A professor teaching students in an electronics lab using a computer, highlighting the accessibility and versatility of learning with eLABin1™ – 'For everyone and everywhere'.

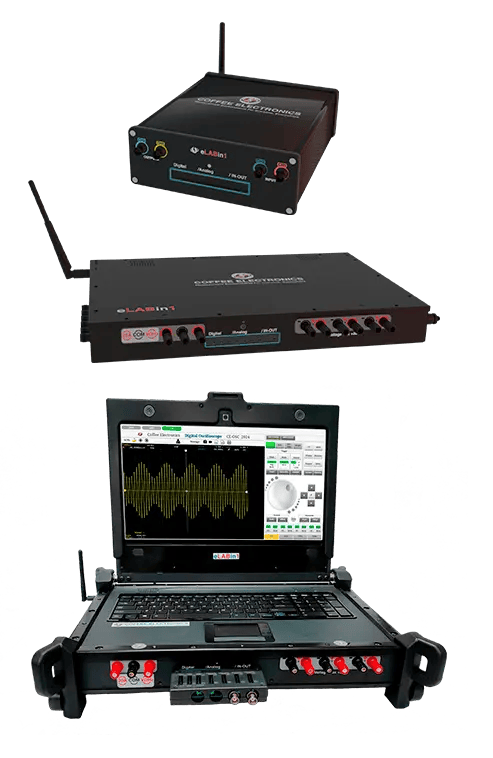

eLABin1™ Product Range, for Every Need

Basic eLABin1™

Basic eLABin1 picture
  • Basic measuring instruments
  • Up to 32 channels per instrument
  • High resolution at lower speed
  • Ideal for education purpose
see more

Scientific Lite eLABin1™

Front view of the eLABin1™ Scientific Lite, highlighting its advanced yet compact design.
  • Covers all offered measuring instruments
  • Not includes keyboard, screen, and accessories
  • High-resolution, high-speed, generators, and analyzers
  • Compact version for professionals
see more

Scientific+ eLABin1™

eLABin1 picture
  • Covers all offered measuring instruments
  • Includes keyboard, screen, and accessories
  • High-resolution, high-speed, generators, and analyzers
  • Rugged version for professionals
see more

Compare eLABin1™ models

  • Available
  • Coming Soon
Models
Basic
PNr:C67789
Generators
PNr: C6790
Analyzers
PNr: C6791
Scientific Lite
PNr: C6792
Scientific +
PNr: C6793
Boards/Components
Instruments
2 CHs
4 CHs
2 CHs
4 CHs

          FPGA+SBC
Basic functions
Xilinx Kintex7
ARM 64 bit Dual Core
4 Giga RAM
Android OS
PNr: B2745
AWG HR
VSG HR
OSC HR
SA HR
LA
LG

         DAC 1
2x BB 80 MHz
1x RF 6 GHz
PNr: B2746
AWG HS
VSG HS
RFG

            DAC 2
2x BB 80 MHz
1x RF 6 GHz
PNr: B2747
AWG HS
VSG HS
RFG

          ADC 1
2x BB 400 MHz
2x RF 6 GHz
ADC 8 /12 bit
PNr: B2748(8 bit)
PNr: B2749(12 bit)
OSC HS
SA HS

         ADC 2
2x BB 400 MHz
2x RF 6 GHz
ADC 12 bit
PNr: B2751(12 bit)
OSC HS
SA HS

Power
PNr: B2752
HPS
MUL
VOL & CURR Sensors
VOL & CURR Switches

Accessories and peripherals
LCD
Touchpad
Keyboard
Speakers
Camera
Bumpers
PNr: A2752
Abbreviation Meaning
AWG HR
Arbitrary Wave Generator High Resolution
VSG HR
Vector Signal Generator High Resolution
OSC HR
Oscilloscope High Resolution
SA HR
Spectrum Analyzer High Resolution
LA
Logic Analyzer
LG
Logic Generator
AWG HS
Arbitrary Wave Generator High Speed
VSG HS
Vector Signal Generator High Speed
RFG
Radio Frequency Generator
VNA
Vector Network Analyzer
Abbreviation Meaning
OSC HS
Oscilloscope High Speed
SA HS
Spectrum Analyzer High Speed
TDR
Time Domain Reflectometer
NG
Noise Generator
RFAA
Radio Frequency Amplifier and Attenuator
MUL
Multimeter
BPS
Bench Power Supply
VIT
V-I Tester
PM
AC/DC Power Meter

For further information please check the:

FAQs
Forum

Meet the accessories for eLABin1™

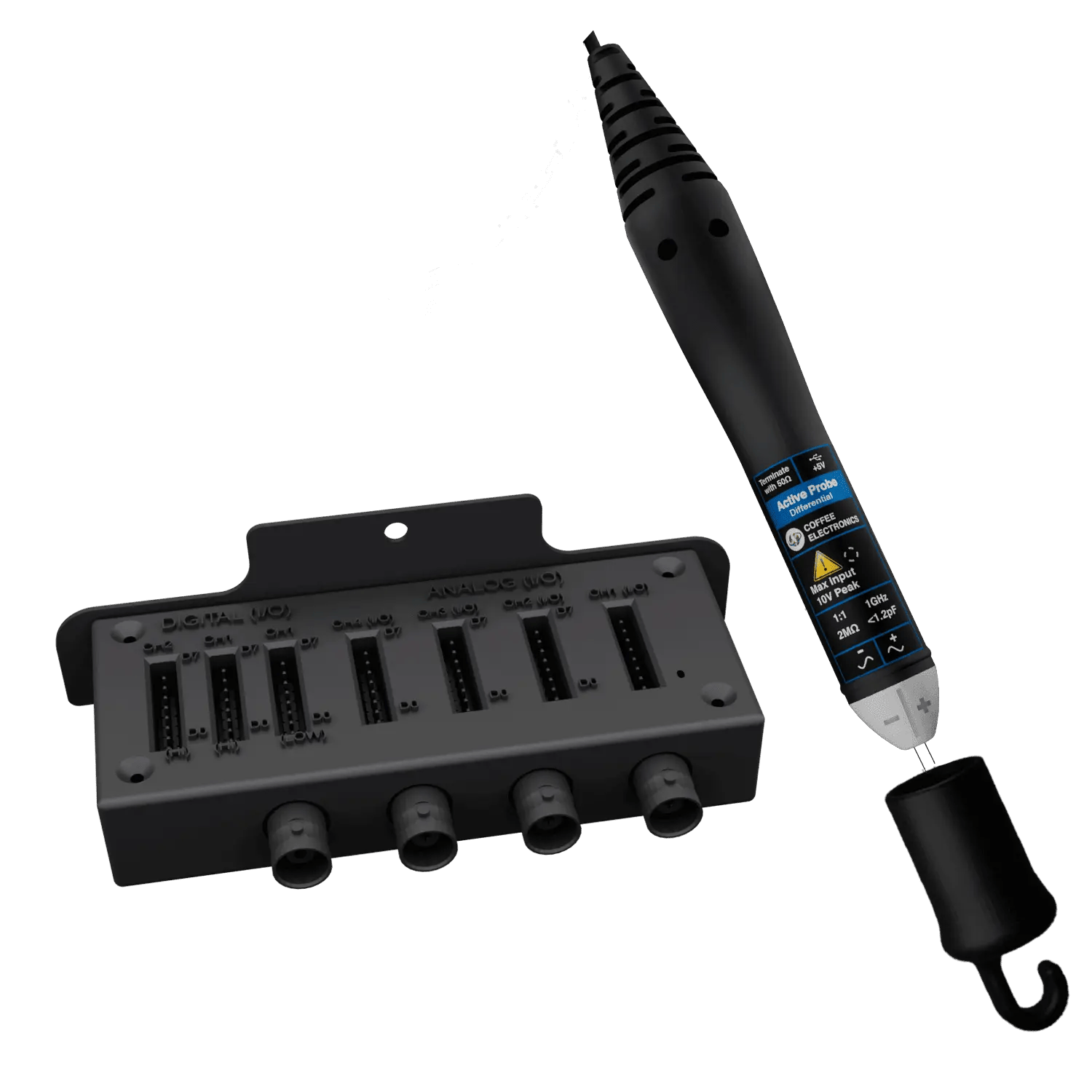

Connector box and Active Probe picture

eLABin1™ is not only a multifunctional and advanced device, but it also comes with a series of accessories that improve its versatility and performance, such as the Analog Digital I/O Connector and the Active Probe 1GHz. We invite you to learn more about these and other accessories that make the eLABin1™ an indispensable tool for electronics professionals and hobbyists. Visit our website to learn more and discover how these accessories can enhance your projects.

Accesories
