- 6 GHz, 8 - 12 bits ADC
- 2 - 4 channels maximun
- Extended by the time dimension, introducing the real time ‘waterfall spectrogram’
Core Features
Markers
Add markers on peaks: Right peak and left peak.
Memory Depth
Change the number of points: 8K, 16K, 32K and 64K.
Color Map

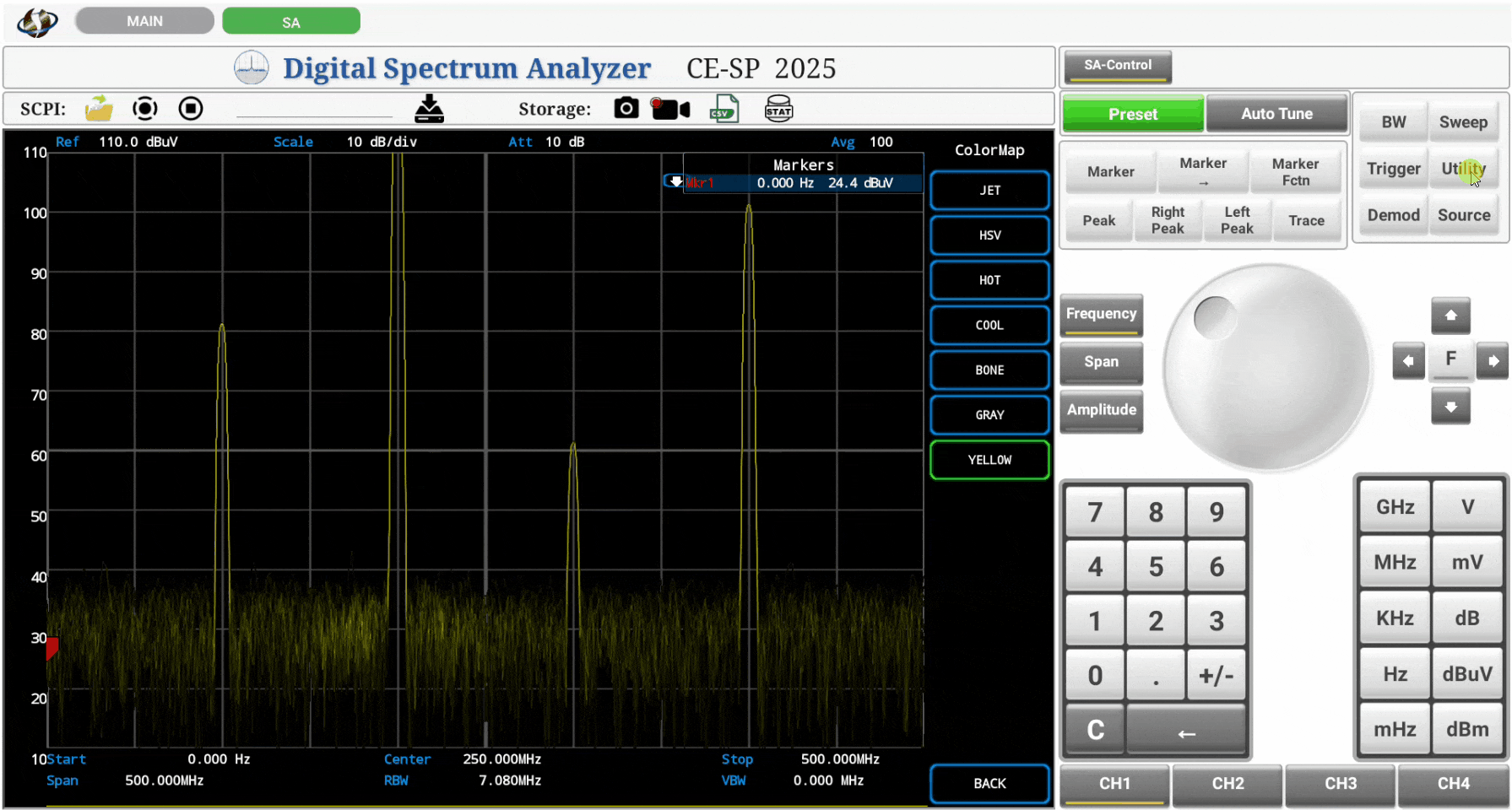

View different styles: JET, HSV, HOT, COOL, BONE, GRAY and YELLOW.
Instrument Functions and Modes
Modify Signal
Add and remove markers on the peaks.
Parameters: Center, Start, Stop, Frequency and Amplitude.
Represent

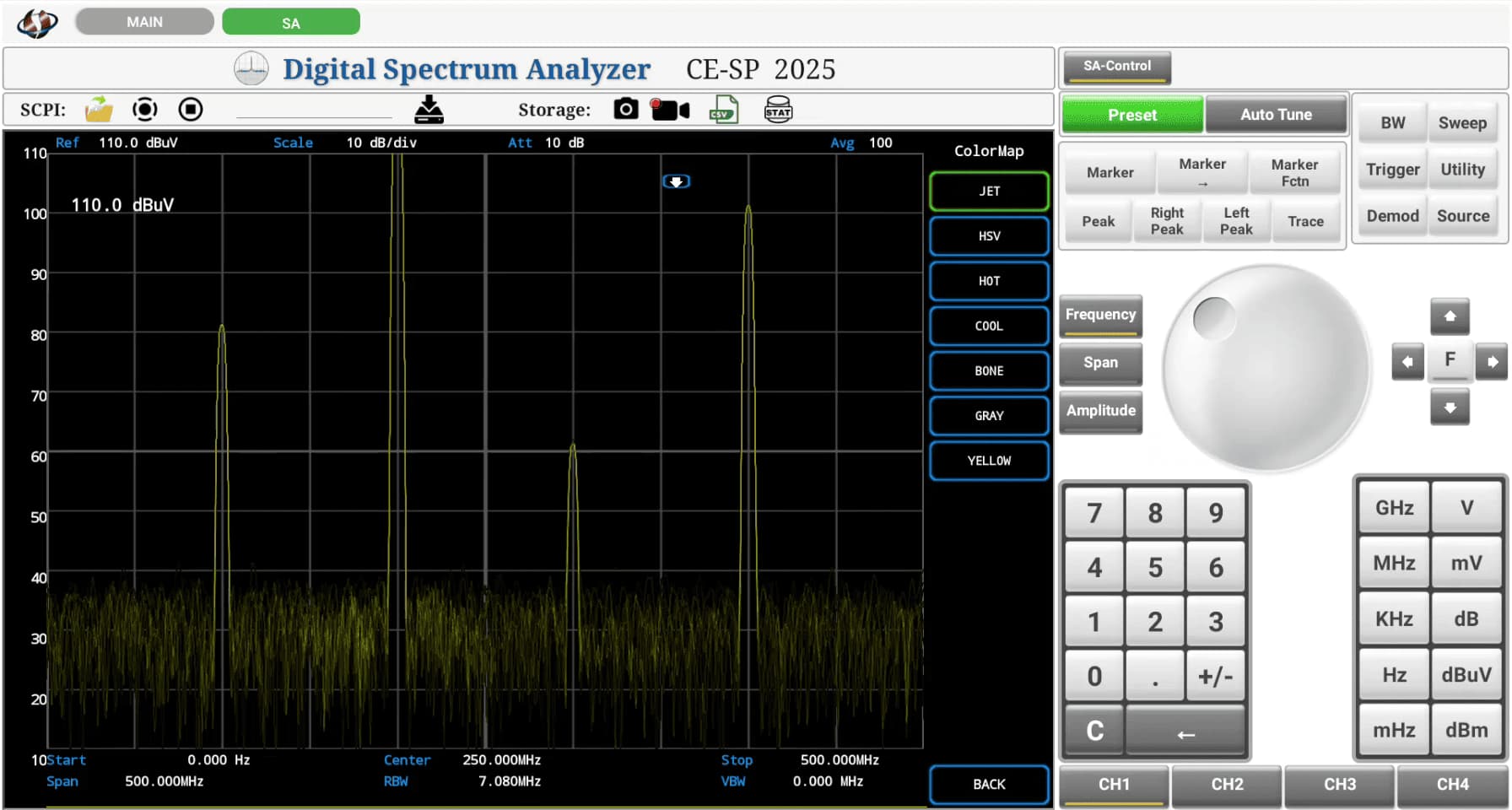

Select between: 2D, Analog, 3D and Waterfall Spectrogram.
Color Map
View different styles: JET, HSV, HOT, COOL, BONE, GRAY and YELLOW.
Future Functions / Modes
VBW, Trace, Sweep, Trigger, Demod and Source
Technical data table
| Property | Data |
|---|---|
|
Max multiframe channels |
2 – 4 channels |
|
Max frequency |
450 MHz – 6 GHz |
|
ADC |
8 – 12 Bits |
|
Min resolution bandwidth |
1 Hz |
