- 2 - 4 Baseband Channels (1 - 2 IQ Channels)
- 6 GHz max RF Frequency
- Up to 30 digital modulations
Core Features
I-Q signals
Turns the I - Q outputs on and off.
Modulation Mode
Digital modulations: 8QAM, 16QAM, 32QAM, 64QAM, 128QAM, etc. Single carrier and OFDM.
RF Mode
Activates the channel's output and changes the parameters.

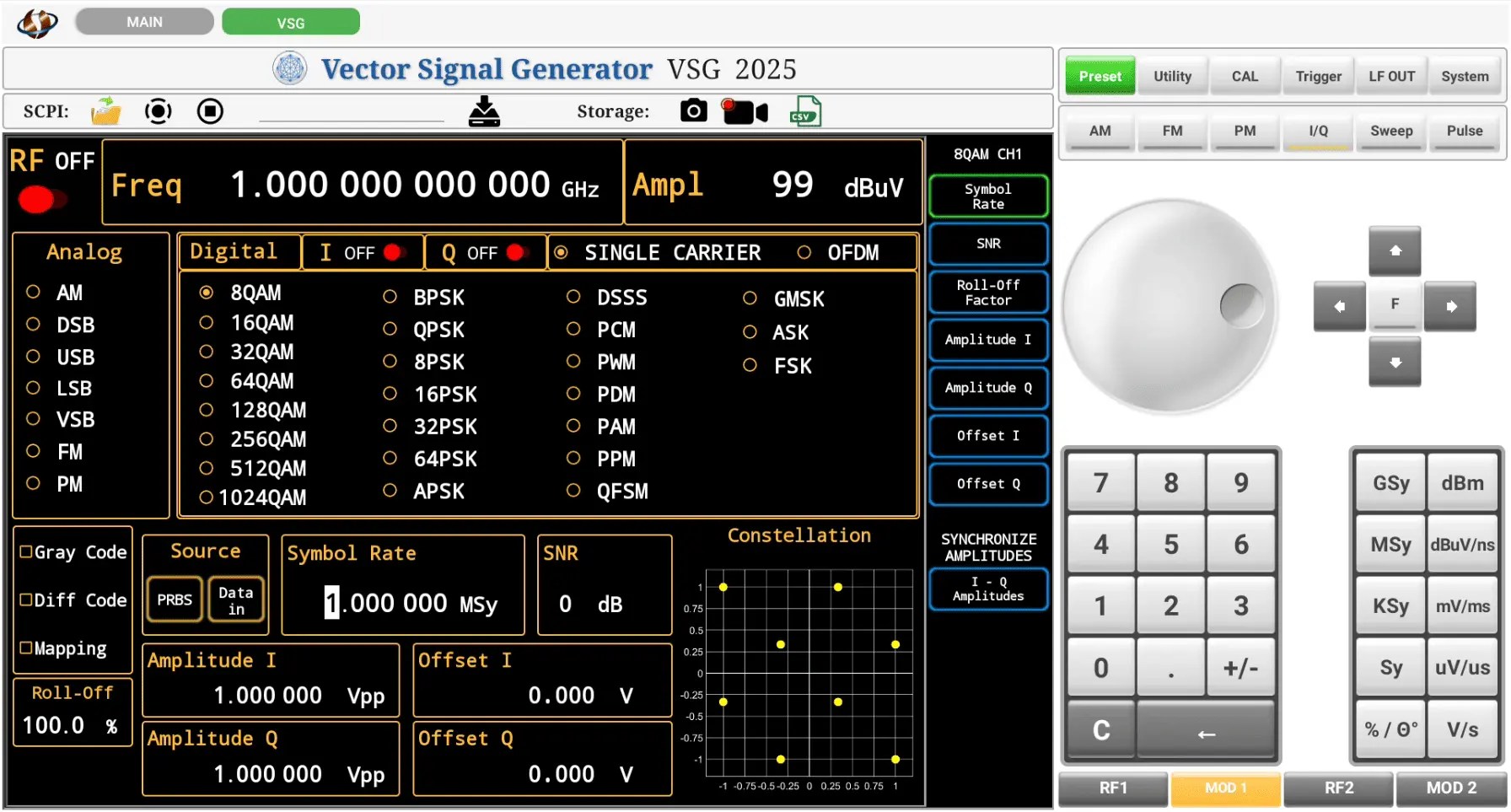

Instrument Functions and Modes
Modulation Mode
Digital modulations: 8QAM, 16QAM, 32QAM, 64QAM, 128QAM, etc.
Parameters: Symbol rate, Roll-off factor and Amplitude Signal IQ.
RF Mode
Parameters: Frequency and Amplitude.
Future Functions / Modes
Data in, Multi-Rate, Mapping and More Digital Modulations.
Technical data table
| Property | Data |
|---|---|
|
Max multiframe channels |
2 – 4 Baseband CH (1 – 2 IQ CH) |
|
Max Symbol Rate |
15MSy |
|
Max frequency in RF |
6 GHz |
|
Max amplitude |
± 8/4 Vp Hi-Z/50Ω BB |
|
Max amplitude in RF |
15 – 100 dBuV |
|
Roll off factor |
0 to 100% Full raised cosine filter |
|
Mapping |
Normal / Gray coded |
|
Data in |
PRBS |
