Arbitrary Waveform Generator

  • 2 - 4 channels maximum
  • Maximum frequency 80 MHz
  • The channels are coherently synchronized
  • Compatible with Oscilloscope and Spectrum Analyzer.
Contact Us

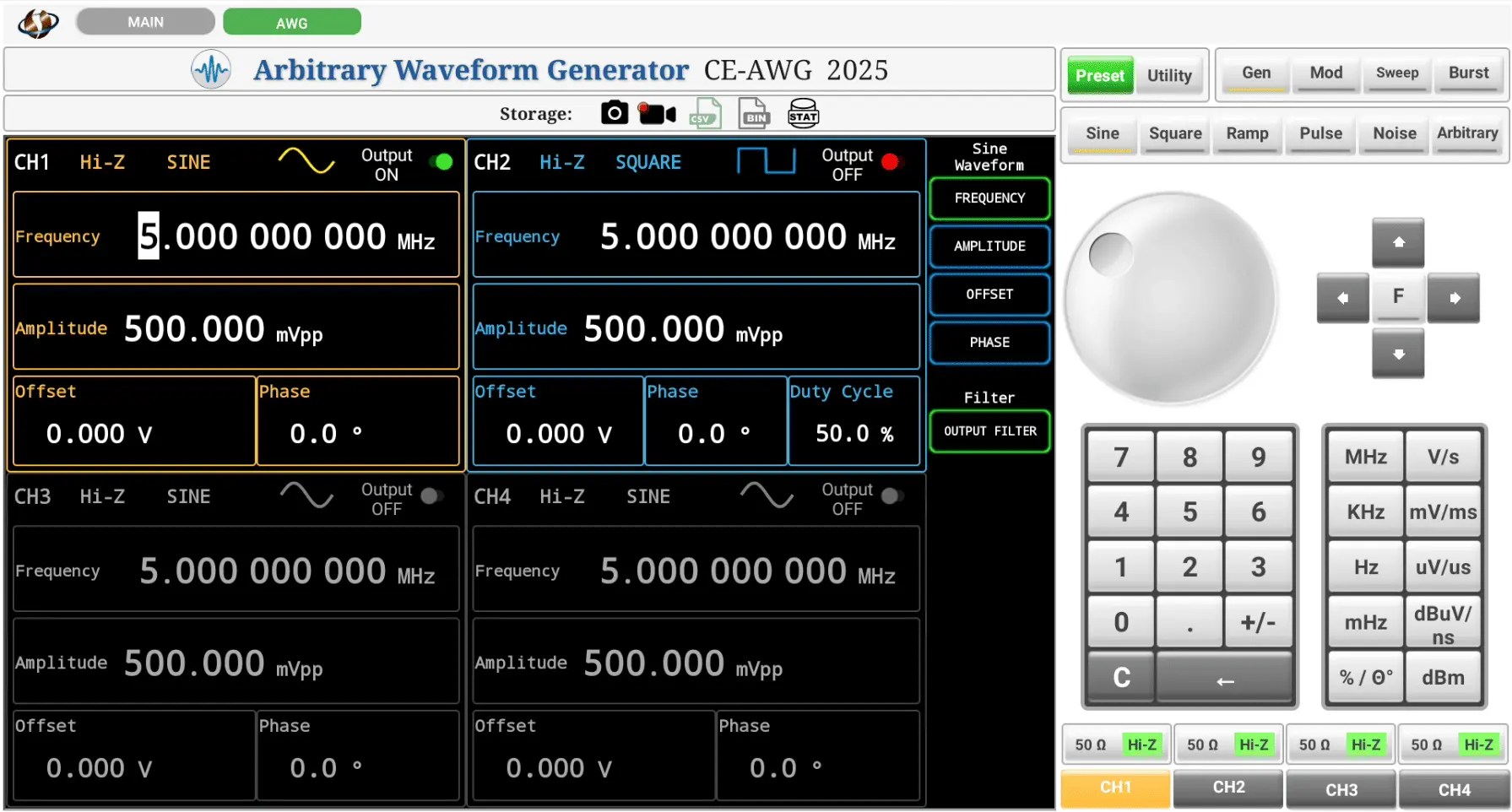

Interface of the Arbitrary Waveform Generator, displaying signal generation features.

Core Features

Arbitrary Waveform Generator Key Features

Arbitrary Waveform

Use 3 different ways to generate arbitrary signals: Internal (Common Signals), External or Load your own file.

Basic Waves

Control the basic signals: Sine, square, ramp, pulse, noise and all its parameters.

Modulation Mode

Generate Analog Modulations: AM, FM, PM and change its parameters.

Sweep Mode

Two possibilities: in frequency and amplitude.

Instrument Functions and Modes

Animated visualization of waveforms generated by the Arbitrary Waveform Generator, including sine, square, triangle, pulse, noise, and arbitrary signals

Generator Mode

Basic signals: Sine, Square, Ramp, Pulse, Noise.
Parameters: Frequency, Amplitude, Offset, Phase, Duty, Symmetry, Edge Time, Pulse Width.

Arbitrary Mode

  1. Internal – Generate preset arbitrary waveforms: 80+ Default Internal Waveforms (Common, math, engine, window, trigo, medical, filter).
  2. External – Connect your own signal: Video or Audio.
  3. Load: Create your wave, load the file and use it.
Animated visualization of default arbitrary waveforms in Arbitrary mode."
Animated visualization of analog modulation modes: AM, FM, and PM.

Modulation Mode

Analog Modulations: AM, FM, PM.
Parameters: Frequency, Amplitude, Phase, Depth, Deviation, Index.

Sweep Mode

Modes: Frequency and Amplitude.
Parameters: Start , Stop, Step, Number of Step, Sweep Time, Sweep Type.

Animated visualization of Sweep mode parameters and its different modes.

Future Functions / Modes

Burst Functions

Technical data table

Property Data
Max multiframe channels
2 – 4 channels
Max frequency
80 MHz
Max amplitude
± 8/4 Vp Hi-Z/50Ω
